DDIC Download

This program creates an offline download of SAP® Data Dictionary components. Depending on the settings up to 3 files will be written into the target directory. These files contain information about tables, fields, company codes, application components of the SAP® system.

The following 3 files are generated (where SYSID = SAP system ID, INSTALLID = SAP installation number, TIMESTAMP = timestamp in the YYYYMMDDHHMMSS and LANGU = SAP language):

1. Tables; File
   <SYSID>_<INSTALLID>_<TIMESTAMP>_TABLES_<LANGU>.CSV
2. Optional Field Data; File
   <SYSID>_<INSTALLID>_<TIMESTAMP>_FIELDS_<LANGU>.CSV
3. System data; File
   <SYSID>_<INSTALLID>_<TIMESTAMP>_SYSDATA_<LANGU>.CSV

The file names contain the 3-digit SAP® system ID (SYSID) and the SAP installation number (INSTALLID) for identification purposes.

The files are created using a CSV format. Columns are delimited by ASCII hex09 (htab).

The function can be run by calling the transaction /AUDIC/SE_DDIC.

The following selection screen is displayed:

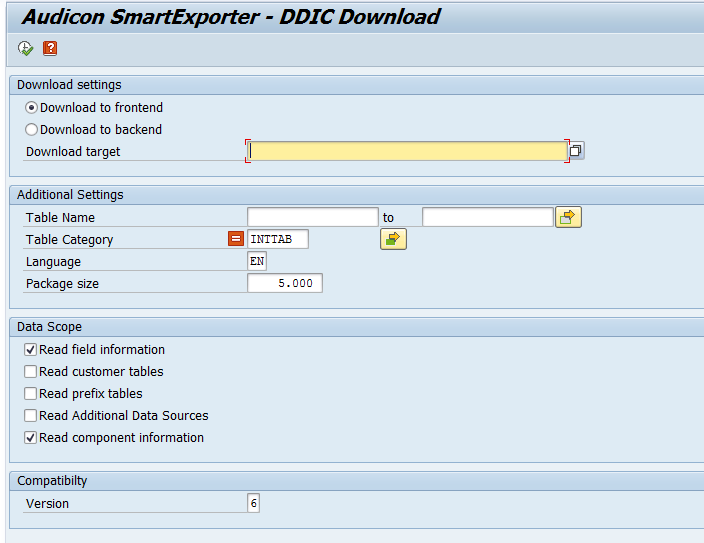

Figure: Selection Screen /AUDIC/SE_DDIC



The parameters have the following function:

Download Settings
Download to frontend	Download to frontend: Files will be written to the local SAP® client machine (only applicable with small data volumes).
Download to backend	Download to backend: Files will be written to the logical directory of the SAP® application server file system.
Additional Settings
Table Name	Using the Table Name option you can make restrictions to certain tables.
Table category	Using the Table category option you can limit the tables to be considered for the download. TRANSP - transparent table INTTAB - structure CLUSTER - cluster table POOL - pool table VIEW - gen. view-structure APPEND - append-structure If no types are specified, transparent tables, pool tables, cluster tables and views will be selected. Downloading structures and append data is of no actual use as no data can be loaded from these types of tables.
Language	Determines the selection of language-dependent description texts.
Package size	Controls the packaged reading to prevent memory overflows. It is recommended to choose a package size between 500 and 20,000 records depending on the system performance.
Data Scope
Read field information	Determines if a file is written containing table field data.
Read customer tables	Determines if customer-tables are selected (Z- and Y-Tables).
Read prefix tables	Determines if prefix-tables are selected (/prefix/table name).
Read Additional Data Sources	The flag determines if Additional Data Sources that are created by SmartExporter using its own definition files will be read. The Additional Data Sources are defined by means of further installations that, for example, enable access to HR clusters.
Read component information	This option determines if additional information on the SAP® application components will be read.
Compatibility
Version	If you want to read the Data Dictionary information for SmartExporter 2016 R1 or previous versions, enter the value 5. For version 2018 R1 or higher enter the value 6. The preset value is 6. The reason why it is necessary to differentiate the SmartExporter versions is the native support of the INT8 SAP® data type in the Windows client. In the SmartExporter 2016 R1 version with the SmartExporter SAP® components 5.0.0001 SP2 or previous versions this new data type had not been considered yet.

Table: Parameters of /AUDIC/SE_DDIC



Downloading a Data Dictionary may take several minutes depending on the selection of parameters and the system load.

Downloads to backend can be processed as a background task. With this option enabled information about generated files and records will be written to the job log. If the download is directed to the frontend or backend (please consider timeouts!), a log list will be created (see figure: Protocol DDIC Download Frontend).



Figure: Protocol DDIC Download Frontend



Figure: Joblog background task



After scheduling a job you can monitor it directly via the transaction SM37 or the function Request Overview.
